Product Details

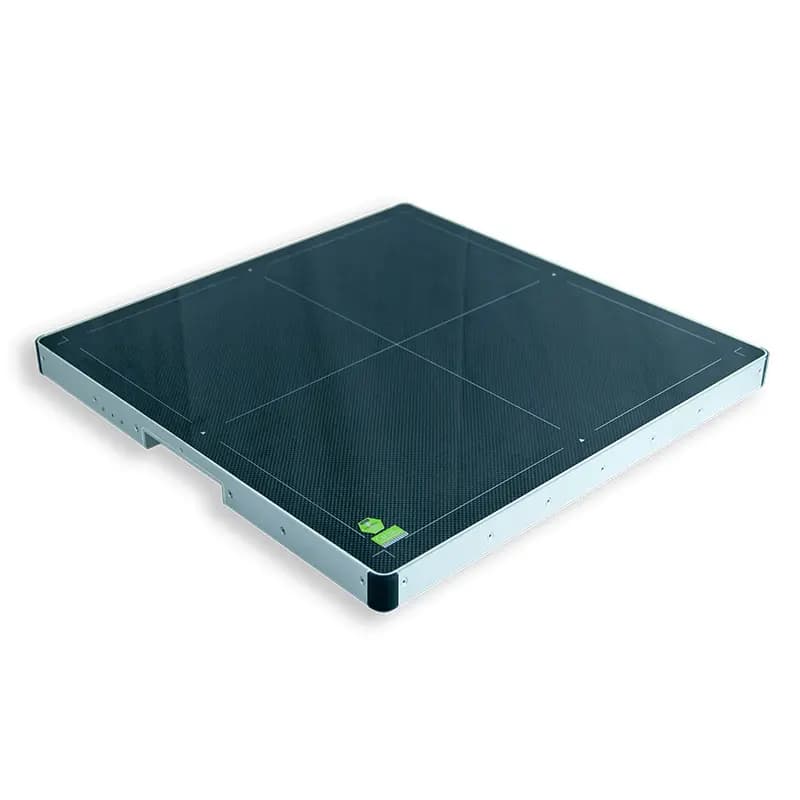

Product Name: CareView 1800R – 17"×17" Wired Cesium Iodide Flat Panel Detector Product Type: Flat Panel Detector Manufacturer: CareView Model: 1800R Specifications: 17"×17" Wired Cesium Iodide Flat Panel Detector Sensor - Scintillator: Direct-grown Cesium Iodide (CsI) - Imaging area: 43.4 x 43.4 cm - Pixel array: 2816 x 2816 - Pixel size: 154 μm Image Quality - Gray scale: 16 bits - Limiting resolution: 3.3 lp/mm Data Communication - Communication interface: Gigabit Ethernet - Image readout time: 2–3 seconds - Exposure mode: Manual synchronization and external synchronization Mechanical Parameters - Dimensions: 49.2 x 49.2 x 3.35 cm - Weight: 10 Kg (including battery) - Housing material: Carbon fiber front cover, high-strength aluminum alloy rear cover - Load capacity: Surface load 150 Kg, 100 Kg @ φ40 mm - Operating temperature: 5–35 °C Power Supply - Power input: 100–250V AC - Frequency: 50/60 Hz - Power consumption (operating/standby): 20W / 8W
