Product Details

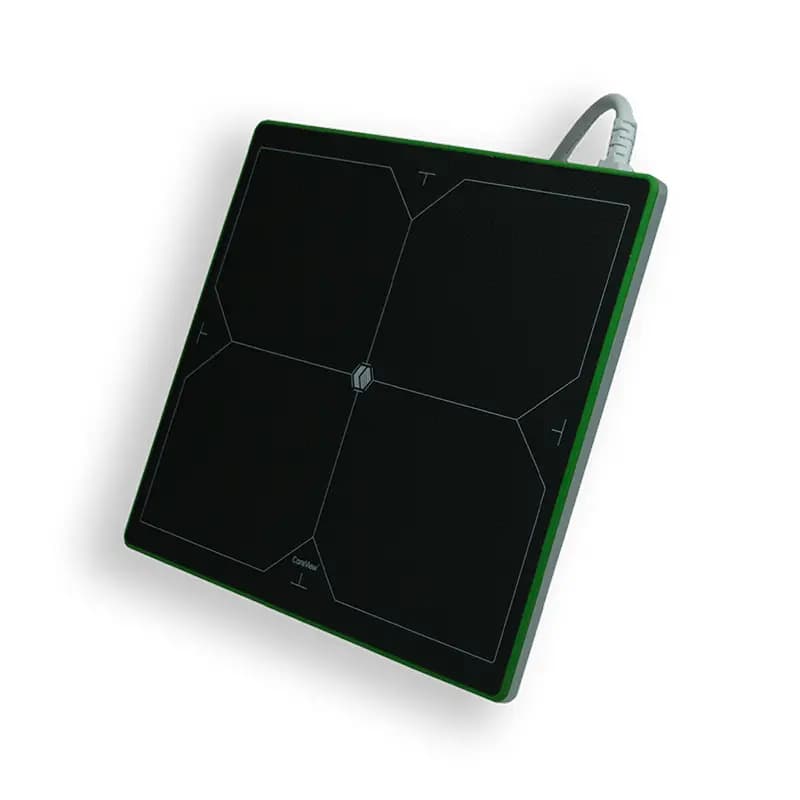

Product Name: CareView 750C – 10"×12" Wired Cesium Iodide Flat Panel Detector Product Type: Flat Panel Detector Manufacturer: CareView Model: 750C Specifications: 10"×12" Wired Cesium Iodide Sensor - Scintillator: Direct-grown Cesium Iodide (CsI) - Imaging area: 30.72 x 24.43 cm - Pixel array: 2560 x 2048 - Pixel size: 120 μm Image Performance - Gray scale: 16 bits - Limiting resolution: 4.16 lp/mm Data Communication - Communication interface: Gigabit Ethernet - Image readout time: 2–3 seconds - Exposure control: F2AED full-field automatic exposure, manual synchronization Mechanical Parameters - Dimensions: 33.3 x 28.2 x 1.5 cm - Weight: 2 kg (including battery) - Housing material: Carbon fiber front cover, high-strength aluminum alloy rear cover - Load capacity: Surface load 150 kg, 100 kg @ φ40 mm - Operating temperature: 5–35 °C Power Supply - Power input: 100–250V AC - Frequency: 50/60 Hz - Power consumption (standby / operating): 8W / 17W
