Product Details

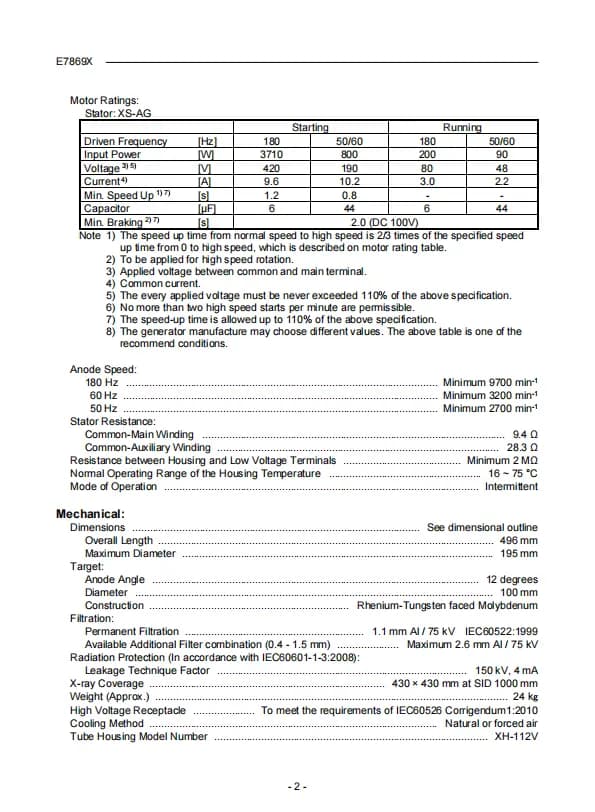

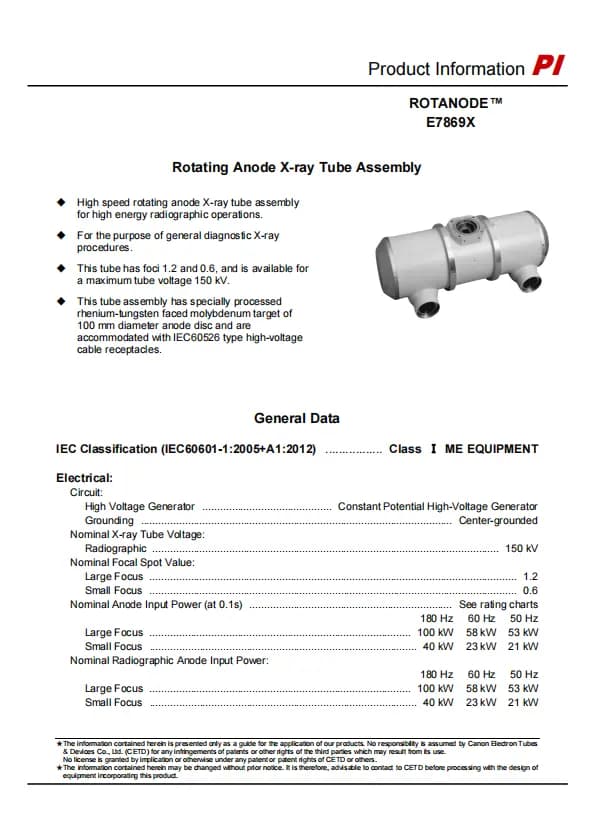

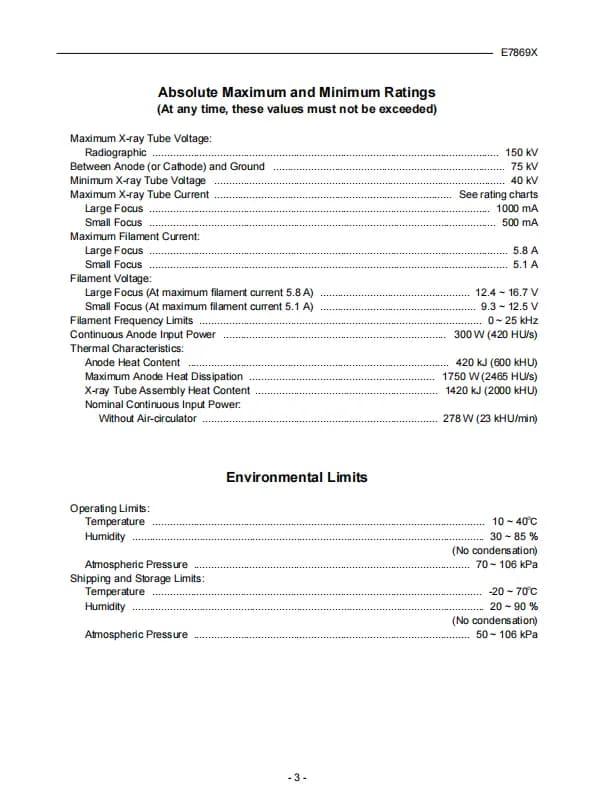

Product Name: Canon (Former Toshiba) E7869X X-ray Tube Product Type: 4-inch Rotating Anode X-ray Tube Assembly (Radiography & Fluoroscopy) Manufacturer: Canon Electron Tubes & Devices Co., Ltd. Model Specification: E7869X Specifications & Parameters: Large / Small Focal Spot Size: 1.2 mm / 0.6 mm Maximum Tube Voltage: 150 kV Short-term Power Rating (0.1s) 50Hz mains: Large focus 53 kW, Small focus 21 kW 60Hz mains: Large focus 58 kW, Small focus 23 kW 180Hz high-speed drive: Large focus 100 kW, Small focus 40 kW Maximum Tube Current: 400/800 mA (50Hz); 400/900 mA (60Hz); 500/1000 mA (180Hz) Target Angle: 12° Anode Heat Capacity: 600 kHU Anode Cooling Rate: 1750 kHU/min Anode Rotation Speed: 2700 r/min (50Hz), 3200 r/min (60Hz), 9700 r/min (180Hz) Matching Housing Model: XH-112V High Voltage Receptacle Type: XS-AG Anode Construction: 74 mm molybdenum substrate with rhenium-tungsten target
