Product Details

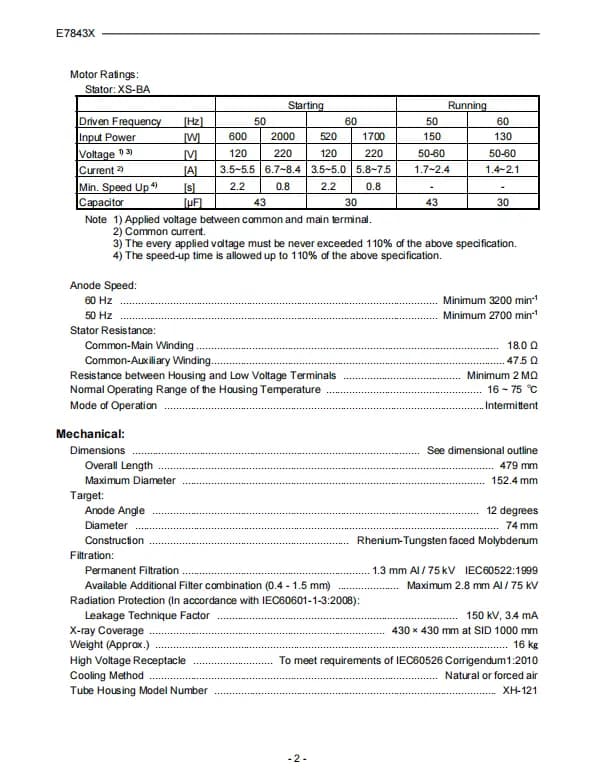

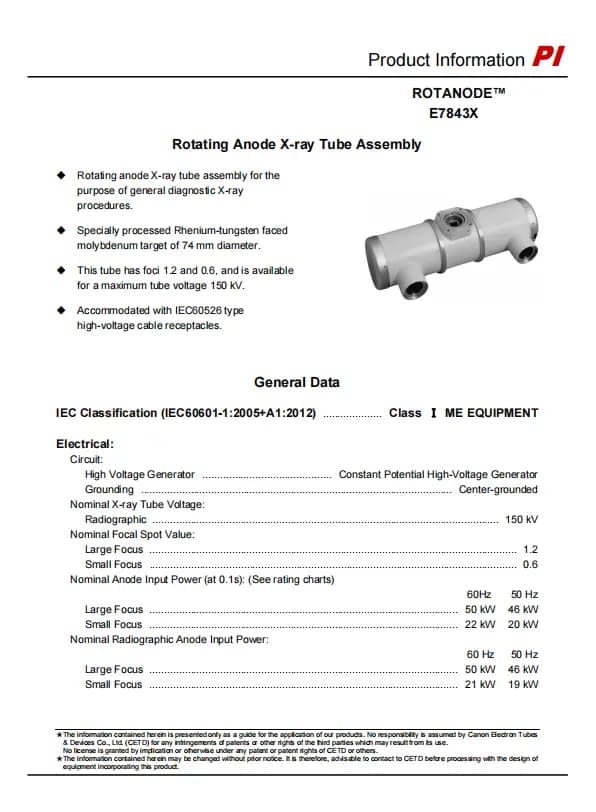

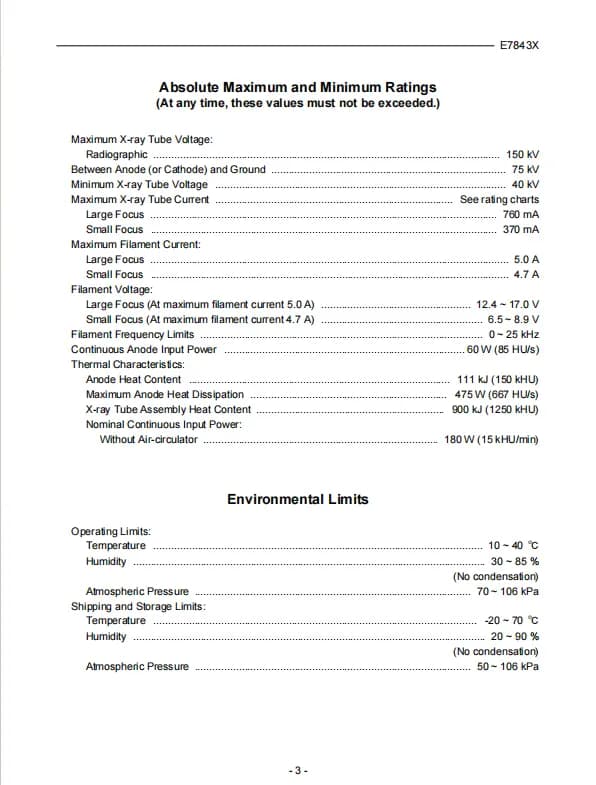

Product Name: Canon (Former Toshiba) E7843X X-ray Tube Product Type: 3-inch Rotating Anode X-ray Tube Assembly (For Mobile DR / Portable Radiography) Manufacturer: Canon Electron Tubes & Devices Co., Ltd. Model Specification: E7843X Specifications & Parameters: Large / Small Focal Spot Size: 1.2 mm / 0.6 mm Maximum Tube Voltage: 150 kV Short-term Power Rating (0.1s exposure) 50Hz mains: Large focus 46 kW, Small focus 20 kW 60Hz mains: Large focus 50 kW, Small focus 22 kW Maximum Tube Current: 370 mA / 760 mA Target Angle: 12° Anode Heat Capacity: 150 kHU Anode Rotation Speed: 2700 r/min (50Hz), 3200 r/min (60Hz) Matching Tube Housing: XH-121 High Voltage Receptacle: XS-BA Anode Construction: 74 mm molybdenum substrate with rhenium-tungsten target Overall Dimension: Length 437 mm, Diameter 152.4 mm Approx. Weight: 16.4 kg Inherent Filtration: 0.9 mm Al equivalent (at 75 kV)
