Product Details

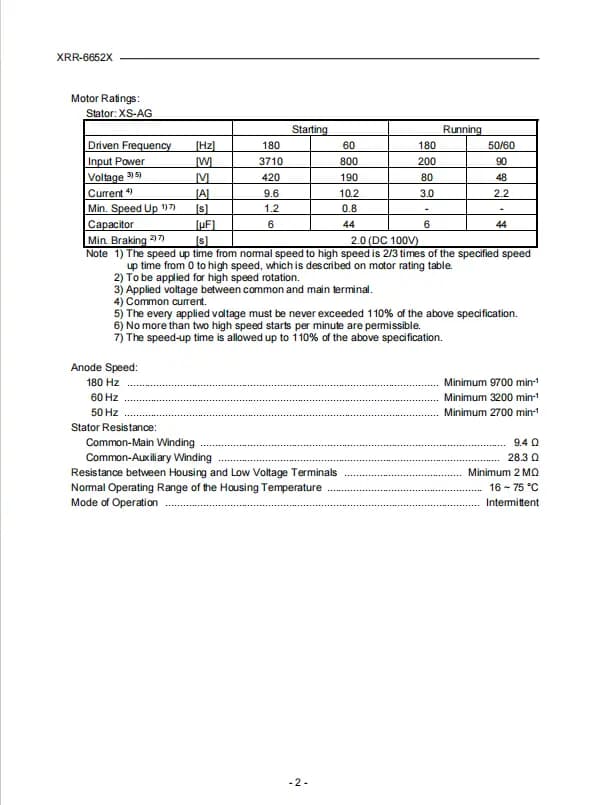

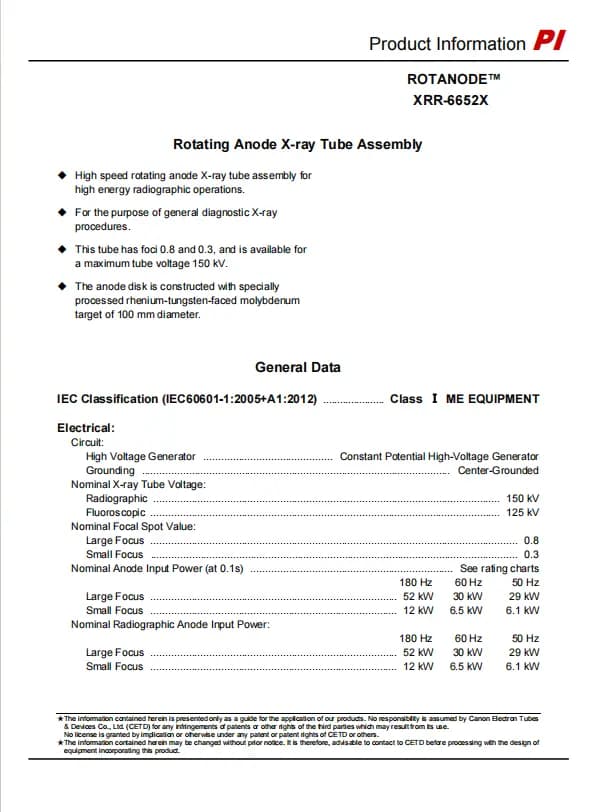

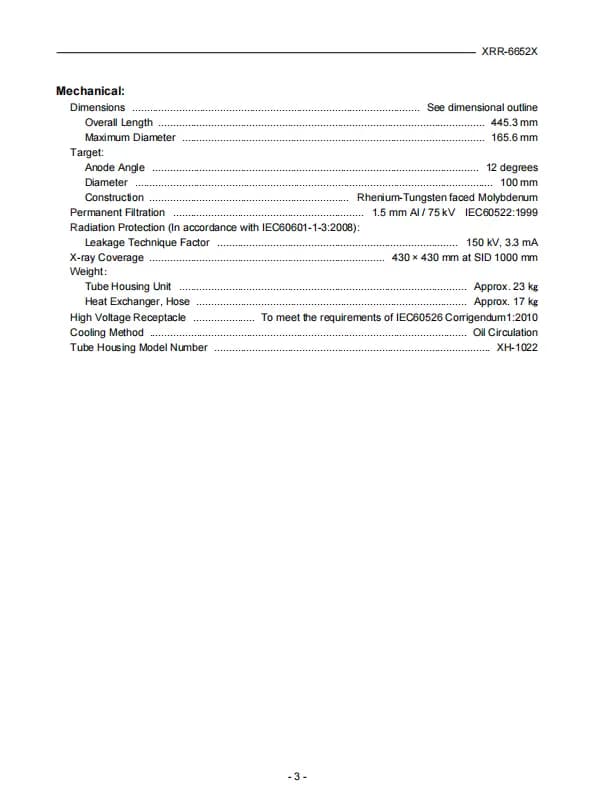

Product Name: Canon (Former Toshiba) PE-XRR-6652X X-ray Tube Product Type: 4-inch High-Speed Rotating Anode X-ray Tube Assembly (Radiography & Fluoroscopy for Fine Imaging) Manufacturer: Canon Electron Tubes & Devices Co., Ltd. Model Specification: PE-XRR-6652X Specifications & Parameters: Large / Small Focal Spot Size: 0.8 mm / 0.3 mm (Micro focus for angiography & extremity imaging) Maximum Tube Voltage: 150 kV (Radiography), 125 kV (Fluoroscopy) Target Angle: 12° Anode Heat Capacity: 600 kHU (420 kJ) Anode Maximum Cooling Rate: 2300 kHU/min (1670 W), suitable for continuous cine fluoroscopy & long-time angiography Anode Construction: 74 mm molybdenum substrate with high-emissivity crack-resistant rhenium-tungsten target Anode Rotation Speed: 2700 r/min (50Hz), 3200 r/min (60Hz), 9700 r/min (180Hz high-speed) Operating & Storage Environment: Operating temp: 10~40℃; Storage/transport temp: -15~70℃; Humidity: 30%~85% non-condensing High Voltage Receptacle: IEC60526 standard center-grounded connector Cooling Mode: Natural air cooling + forced air cooling Compatible Generator: Constant-potential high-frequency generator
