Product Details

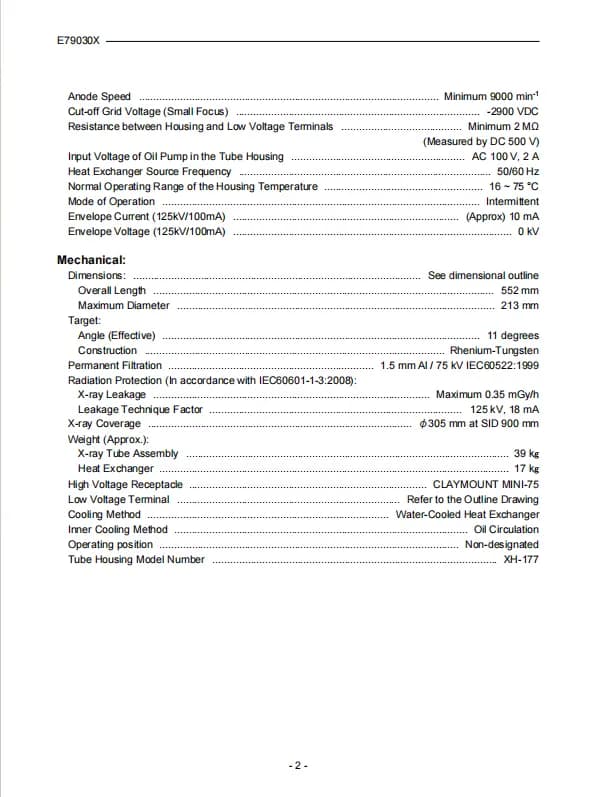

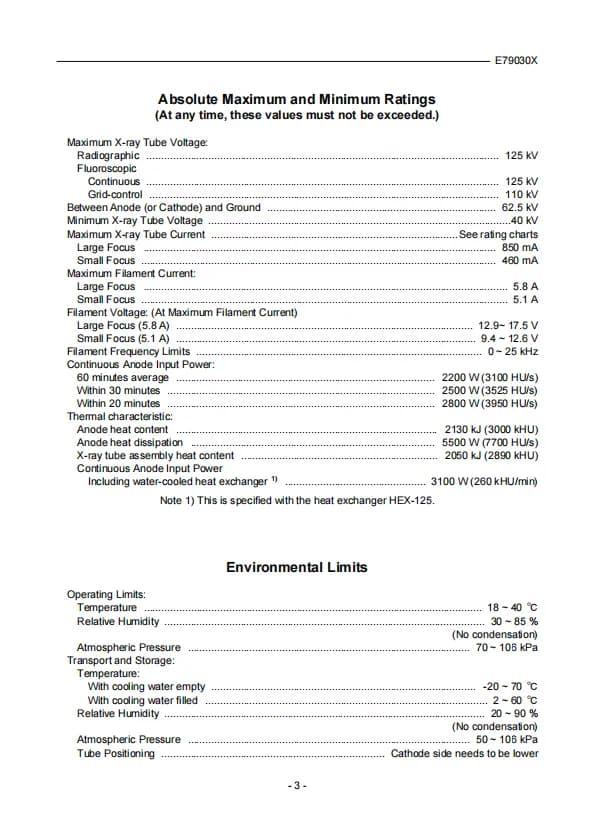

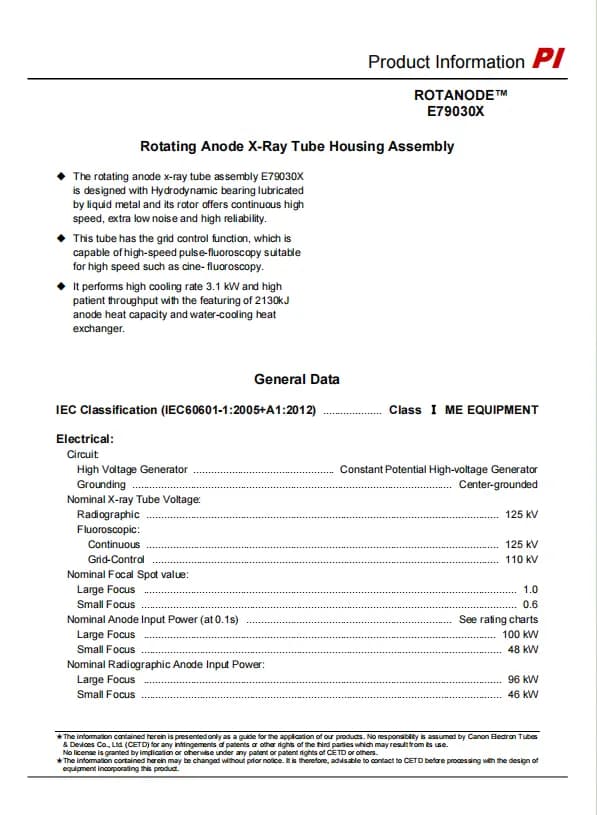

Product Name: Canon (Former Toshiba) PE-E79030X X-ray Tube Assembly Product Type: Liquid Metal Bearing Rotating Anode X-ray Tube Assembly for DSA Angiography (Grid Controlled Pulsed Fluoroscopy) Manufacturer: Canon Electron Tubes & Devices Co., Ltd. Model Specification: PE-E79030X Specifications & Parameters: Focal Spots: Large 1.0 mm / Small 0.6 mm Max Tube Voltage Radiography & Continuous Fluoroscopy: 125 kV Grid-controlled Pulsed Fluoroscopy: 110 kV Short-term Power Rating (0.1s) Large Focus: 100 kW Small Focus: 48 kW Long-term Continuous Load Large Focus Continuous Fluoroscopy: 96 kW Small Focus Grid Pulse Fluoroscopy: 46 kW Target Angle: 11° Anode Heat Storage Capacity: 2130 kJ (3000 kHU) Max Anode Cooling Rate: 3100 W (3.1 kW), equipped with water cooling heat exchanger Anode Construction: Crack-resistant rhenium-tungsten target disc, hydrodynamic liquid metal bearing for silent continuous high-speed rotation Max Anode Rotation Speed: ≥9000 r/min, supporting uninterrupted cine angiography Grid Control Feature: Cathode grid modulation for high-speed low-dose pulsed fluoroscopy Inherent Filtration: 1.1 mm Al equivalent @75 kV High Voltage Connector: CLAYMOUNT MINI-75 receptacle Cooling System: Internal oil circulation + external forced water cooling exchanger Overall Dimension: Length 501 mm, Max Diameter 175 mm Approx. Assembly Weight: 38 kg Generator Matching: Center-grounded constant potential high-frequency generator Radiation Leakage Compliance: IEC60601-1-3 medical X-ray safety standard
